Opening a DC fan can be a fascinating project, whether you're looking to clean it, repair it, or simply understand how it works. This article will guide you through the process step by step, including tips on disassembly, cleaning, and reassembly. We'll also explore the components of a typical DC fan and provide insights into troubleshooting common issues.
DC fans are widely used in electronic devices due to their efficiency and low noise operation. They are powered by direct current and often feature brushless motors, which enhance their lifespan and reliability. Understanding how to open and maintain these fans can help extend their service life and improve overall system performance.

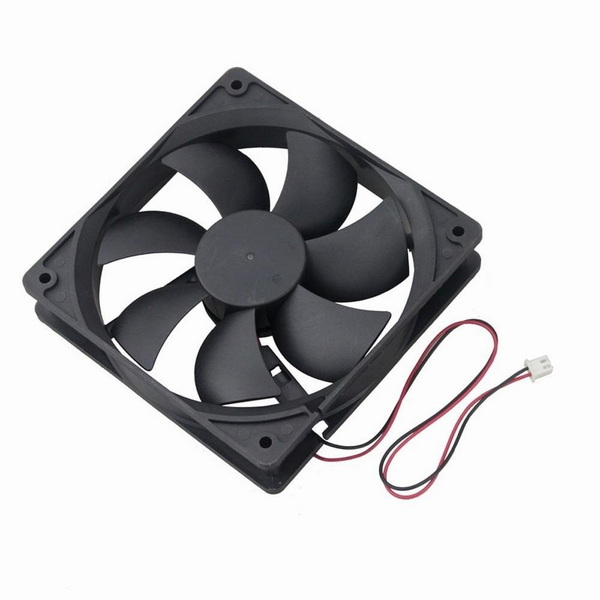

A typical DC fan consists of several key components:
- Brushless Motor: This includes a permanent magnet rotor and a stator with coils. The brushless design ensures efficient operation and minimal wear.
- Fan Blades: These are attached to the rotor and are responsible for airflow.
- Bearing: This allows the rotor to spin smoothly.
- PCB (Printed Circuit Board): Contains the electronic components that control the fan's operation.
To begin disassembling the fan, you need to remove the restriction ring or clip that holds the fan blades in place. This can be done using tweezers or a thin pocket knife. Be careful not to damage the ring, as you'll need it later for reassembly.
Once the restriction ring is removed, you can pull off the fan blades. For some fans, especially smaller ones, this might require a bit of force.
After removing the blades, you'll see the motor assembly. This includes the rotor with the permanent magnet and the stator. To access these components further, you may need to remove additional parts like screws or clips.
Cleaning is an essential step, especially if you're dealing with a dusty fan. Use compressed air or soak the blades in a mild detergent solution. Avoid immersing the PCB in water.
Reassembly is essentially the reverse of disassembly. Ensure all parts are securely in place, and the restriction ring is properly fitted.
- Fan Not Spinning: Check for power supply issues or blockages. Ensure that the fan is receiving power and that there are no obstructions preventing the blades from spinning[1][5].
- Noise: Often due to worn bearings or misaligned blades. Check for any loose parts and ensure proper alignment[3][4].
- Speed Control: Adjust voltage or replace the controller if necessary. Ensure that the voltage supply matches the fan's specifications[2][6].
For more complex issues, consider using a multimeter to check voltage and current flow. Ensure that the fan's PCB is receiving the correct voltage and that there are no shorts or open circuits[1][4].
DC fans can be repurposed for various projects. The motor and magnet can be reused in DIY robotics or other electronics projects. For example, you can use the motor as a generator by attaching it to a dynamo setup.
When working with electrical components, always ensure you are grounded to prevent static electricity damage. Use protective gloves and safety glasses when handling sharp objects or electrical tools.
Opening a DC fan can be a rewarding DIY project, allowing you to clean, repair, or simply explore its inner workings. By following these steps and understanding the components involved, you can maintain your fans effectively and extend their lifespan.
To clean a DC fan safely, use compressed air to remove dust from the blades and motor. For more thorough cleaning, soak the blades in a mild detergent solution, but avoid immersing the PCB in water.
Yes, DC fans can be repurposed for various projects. The motor and magnet can be reused in DIY robotics or other electronics projects.
Replacing bearings in a DC fan involves disassembling the fan to access the bearing. Use a replacement bearing of the same size and type, and ensure it is properly aligned and secured[3].
Yes, you can control the speed of a DC fan by adjusting the voltage supply. Most fans have a linear relationship between voltage and speed, but be cautious not to exceed the maximum recommended voltage[2][6].
DC fans are generally more efficient than AC fans because they use brushless motors, which reduce energy loss due to friction. However, efficiency can vary depending on the specific application and design[3][5].
