Controlling the speed of DC fans is crucial for optimizing cooling performance, reducing noise, and improving energy efficiency in various applications. This comprehensive guide will explore different methods to control DC fan speed, their advantages and disadvantages, and practical implementations.

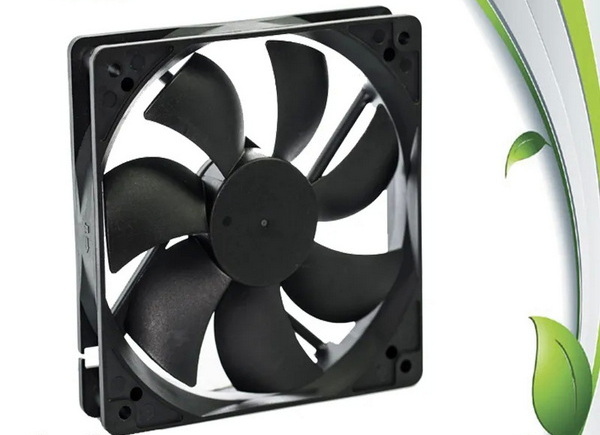

DC fans are widely used in electronic equipment, computer systems, and industrial applications for cooling purposes. They typically operate on 12V or 24V DC power and come in various configurations, including 2-wire, 3-wire, and 4-wire variants.
1. 2-wire fans: These basic fans have power and ground connections.
2. 3-wire fans: In addition to power and ground, they include a tachometer (tach) output for speed monitoring.
3. 4-wire fans: These fans have power, ground, tach output, and a PWM input for speed control.
When selecting a DC fan for speed control, it's important to consider the following specifications:
- Voltage rating: Typically 12V or 24V for most applications
- Current draw: Affects power consumption and heat generation
- Airflow: Measured in CFM (Cubic Feet per Minute)
- Static pressure: Important for applications with airflow restrictions
- Noise level: Measured in dBA
- Speed range: The minimum and maximum RPM (Revolutions Per Minute)
Voltage control is one of the simplest methods to adjust DC fan speed. By varying the input voltage, you can change the fan's rotational speed.
How it works:
- Reducing the voltage slows down the fan.
- Increasing the voltage speeds up the fan.
Advantages:
- Simple implementation
- Works with most DC fans
Disadvantages:
- Limited control range
- May cause stalling at low voltages
PWM is a popular and efficient method for controlling DC fan speed, especially for 4-wire fans.
How it works:
- A PWM signal rapidly switches the power on and off.
- The duty cycle of the PWM signal determines the average power delivered to the fan.
Advantages:
- Wide control range (typically 30-100% of rated speed)
- Energy-efficient
- Precise control
Disadvantages:
- Requires compatible fans or additional circuitry for 2-wire and 3-wire fans
This method involves adding a variable resistor in series with the fan to control its speed.
How it works:
- The resistor creates a voltage drop, reducing the voltage supplied to the fan.
- Adjusting the resistance changes the fan speed.
Advantages:
- Simple implementation
- Works with most DC fans
Disadvantages:
- Energy inefficient due to power dissipation in the resistor
- Limited control range

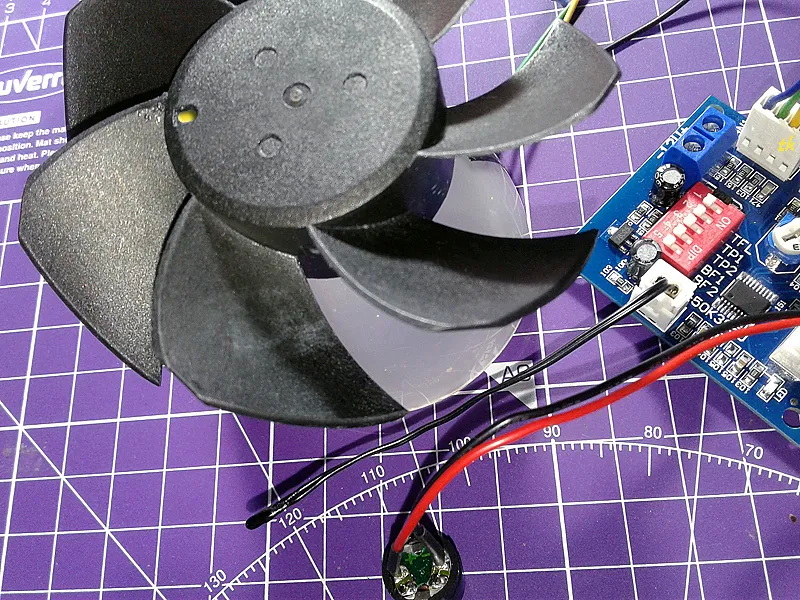

This method adjusts fan speed based on temperature readings from sensors.
How it works:
- Temperature sensors monitor the system or component temperature.
- Fan speed is adjusted automatically based on predefined temperature thresholds.
Advantages:
- Adaptive cooling
- Energy-efficient
- Reduced noise when full cooling is not required
Disadvantages:
- Requires additional sensors and control circuitry
To implement voltage control, you can use a variable voltage regulator or a potentiometer-based circuit.
Example circuit:
+12V
|
|
[Potentiometer]
|
|
[DC Fan]
|
|
GND

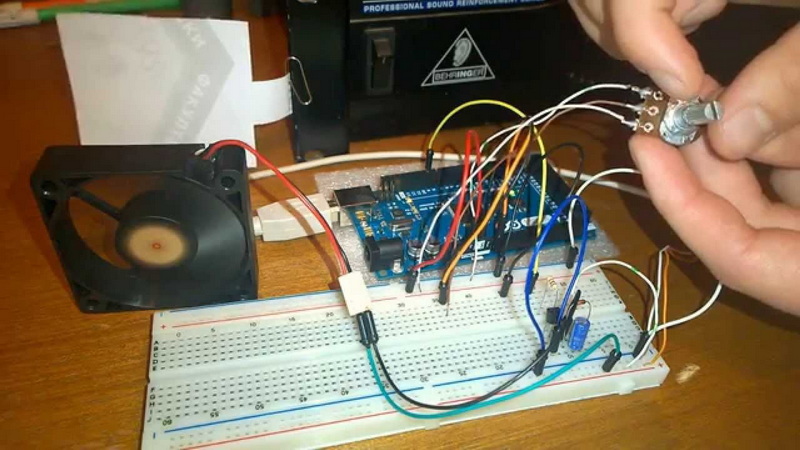

For PWM control, you'll need a microcontroller or a dedicated fan controller IC.
Example using Arduino:
const int fanPin = 9; // PWM pin connected to the fan
void setup() {
pinMode(fanPin, OUTPUT);
}
void loop() {
// Set fan speed to 50%
analogWrite(fanPin, 127);
delay(5000);
// Set fan speed to 100%
analogWrite(fanPin, 255);
delay(5000);
}
This implementation requires a temperature sensor and a microcontroller.
Example using Arduino and a thermistor:
const int fanPin = 9; // PWM pin connected to the fan
const int thermistorPin = A0; // Analog pin connected to the thermistor
void setup() {
pinMode(fanPin, OUTPUT);
}
void loop() {
int temperature = readTemperature();
int fanSpeed = map(temperature, 20, 40, 0, 255); // Map temperature to fan speed
analogWrite(fanPin, fanSpeed);
delay(1000);
}
int readTemperature() {
// Read thermistor and convert to temperature
// Implementation depends on your specific thermistor
}
Proportional-Integral-Derivative (PID) control is an advanced method that can provide more precise and stable temperature regulation.
How it works:
- The controller calculates an error value as the difference between the desired setpoint and the measured process variable.
- It then applies a correction based on proportional, integral, and derivative terms.
Example PID implementation:
double Kp = 2.0; // Proportional gain
double Ki = 0.5; // Integral gain
double Kd = 1.0; // Derivative gain
double setpoint = 30.0; // Desired temperature
double input, output;
double lastError = 0;
double integral = 0;
void loop() {
input = readTemperature();
double error = setpoint - input;
integral += error;
double derivative = error - lastError;
output = Kp * error + Ki * integral + Kd * derivative;
// Constrain output to valid PWM range
output = constrain(output, 0, 255);
analogWrite(fanPin, output);
lastError = error;
delay(100);
}
Fuzzy logic control can be used to create a more human-like decision-making process for fan speed control.
How it works:
- Define fuzzy sets for input variables (e.g., temperature) and output variables (e.g., fan speed).
- Create rules that map inputs to outputs based on linguistic terms.
- Use fuzzy inference to determine the appropriate fan speed.
When controlling multiple fans, consider the following strategies:
1. Zone-based control: Divide the system into thermal zones and control fans for each zone independently.
2. Airflow optimization: Coordinate fan speeds to create positive air pressure and optimize airflow paths.
3. Load balancing: Distribute the cooling load across multiple fans to extend their lifespan.
Implementing effective DC fan speed control can significantly improve energy efficiency:
1. Dynamic voltage scaling: Adjust the fan voltage based on cooling demands to minimize power consumption.
2. Sleep modes: Implement low-power modes when cooling is not required.
3. Energy harvesting: In some applications, excess energy from the system can be used to power the fans.
Minimizing fan noise is crucial for many applications. Consider these techniques:
1. Frequency avoidance: Identify and avoid resonant frequencies that cause increased noise.
2. Gradual speed changes: Implement smooth transitions between speed levels to reduce sudden noise changes.
3. Anti-vibration mounts: Use rubber or silicone mounts to isolate fan vibrations from the chassis.
Noise Reduction Techniques
Regular maintenance and monitoring can extend the life of your DC fans and ensure optimal performance:
1. Dust removal: Regularly clean fans and heatsinks to maintain airflow efficiency.
2. Bearing lubrication: For fans with serviceable bearings, follow manufacturer guidelines for lubrication.
3. Performance monitoring: Use tachometer outputs to track fan speed and detect potential failures.
4. Predictive maintenance: Implement algorithms to predict fan failures based on performance data.
As technology advances, new trends in DC fan control are emerging:
1. IoT integration: Connect fans to the Internet of Things for remote monitoring and control.
2. AI-driven optimization: Use machine learning algorithms to optimize fan speed based on usage patterns and environmental data.
3. Advanced materials: Development of more efficient fan blades and motor designs for improved performance.
1. Choose the right control method: Consider your application requirements, fan type, and available resources when selecting a control method.
2. Ensure proper power supply: Make sure your power supply can handle the maximum current draw of the fan.
3. Use appropriate filtering: When using PWM control, consider adding low-pass filters to reduce electrical noise.
4. Implement soft start: Gradually increase fan speed to reduce inrush current and mechanical stress.
5. Monitor fan health: Use the tachometer output (if available) to monitor fan speed and detect failures.
6. Consider environmental factors: Account for ambient temperature and airflow restrictions in your control algorithm.
7. Optimize for noise: Implement speed curves that balance cooling performance and acoustic noise.
Controlling DC fan speed is essential for optimizing cooling performance, reducing noise, and improving energy efficiency. The choice of control method depends on the specific application requirements, fan type, and available resources. Voltage control offers simplicity, while PWM control provides precise and efficient speed regulation. Temperature-based control adds adaptivity to cooling systems. Advanced techniques like PID control and fuzzy logic can further enhance performance and efficiency.
By implementing best practices, considering noise reduction techniques, and staying aware of future trends, you can create sophisticated and effective DC fan speed control solutions for various applications. Regular maintenance and monitoring ensure long-term reliability and optimal performance of your cooling system.
3-wire fans have power, ground, and a tachometer output for speed monitoring. 4-wire fans include an additional PWM input specifically designed for speed control, offering more precise and efficient speed regulation.
While 3-wire fans are not designed for direct PWM control, you can use PWM to control the voltage supplied to the fan. However, this may require additional circuitry and may not be as efficient as controlling a 4-wire fan.
Higher temperatures can reduce a fan's efficiency and lifespan. Temperature-based control helps mitigate this by adjusting fan speed based on cooling needs, which can extend the fan's life and improve overall system performance.
Fan noise generally increases with speed. Implementing smooth speed transitions and avoiding resonant frequencies can help minimize noise. Some advanced controllers also incorporate algorithms to optimize for acoustic performance.
The optimal fan speed depends on factors such as heat generation, ambient temperature, and noise requirements. Start by monitoring system temperatures under various loads and adjust fan speeds to maintain desired temperatures while minimizing noise and power consumption.
