An AC muffin fan is a specialized type of axial fan widely used in industrial, electronic, and HVAC applications to provide efficient cooling and ventilation. It is named "muffin" fan because its shape resembles a muffin tin or cupcake mold, featuring a compact, square frame with a cylindrical impeller inside. This article explores the working principles, components, design features, and practical applications of AC muffin fans in detail.

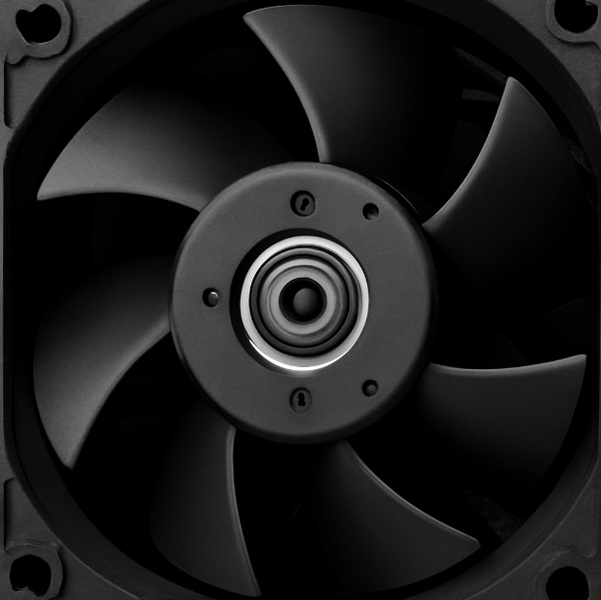

An AC muffin fan is a small to medium-sized axial flow fan powered by alternating current (AC). Unlike traditional propeller fans, muffin fans have a cylindrical impeller enclosed within a square or rectangular frame, making them easy to mount in tight spaces such as electronic equipment cabinets, server racks, and industrial machinery. The fan blades are attached to a rotor that spins when energized by AC power, generating airflow parallel to the axis of rotation.
The compact design and high airflow capacity make AC muffin fans ideal for cooling electronic components, ventilating enclosures, and maintaining temperature control in various industrial systems. They are often used in OEM applications, refrigeration, and ventilation systems where space constraints and reliable performance are critical.

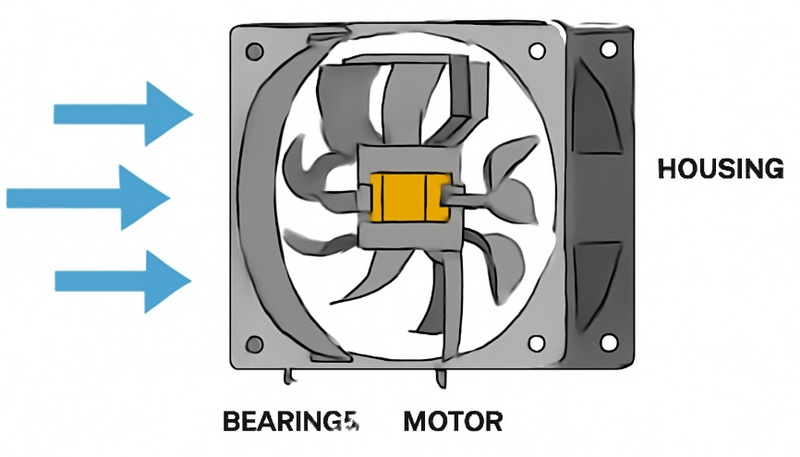

Understanding the main components of an AC muffin fan helps clarify how it operates:
- Motor: The heart of the fan, typically an AC induction motor, which converts electrical energy into mechanical rotation. The motor consists of a stator (stationary part) and a rotor (rotating part). When connected to an AC power source, the stator windings generate a rotating magnetic field that causes the rotor and attached blades to spin.
- Impeller (Blades): The impeller is a set of blades mounted on the rotor shaft. These blades are usually made of thermoplastic, aluminum, or steel and are designed with an airfoil shape to efficiently push air in a linear direction. The number of blades can vary, affecting airflow volume and pressure.
- Housing (Frame): The fan's enclosure is typically a square or rectangular metal frame that supports the motor and impeller assembly. It protects the fan from external damage and facilitates mounting in equipment or ducts.
- Bearings: Dual ball bearings or sleeve bearings support the rotor shaft, reducing friction and noise while extending the fan's operational life.
- Power Cord or Terminals: For electrical connection, the fan may have an attached power cord with a plug or terminals for hardwiring.
The working principle of an AC muffin fan is based on the operation of an AC axial fan and the electromagnetic induction motor. Here is a step-by-step explanation:
1. Power Supply: When the fan is connected to an AC power source (usually 100-240V AC), electrical current flows through the stator windings of the motor.
2. Magnetic Field Generation: The alternating current in the stator coils creates a rotating magnetic field inside the motor housing.
3. Rotor Rotation: The rotor, which is attached to the impeller blades, experiences this rotating magnetic field and begins to spin due to electromagnetic induction.
4. Blade Movement: As the rotor spins, the impeller blades cut through the air, creating a pressure difference. The blades are shaped like airfoils, causing air to be drawn in from one side (the inlet) and pushed out axially on the other side (the outlet).
5. Airflow Creation: The rotation of the blades generates a high volume of airflow parallel to the shaft of the fan. This axial flow moves air efficiently through the fan's housing.
6. Cooling Effect: The continuous movement of air helps dissipate heat from electronic components, machinery, or enclosed spaces, preventing overheating and maintaining optimal operating temperatures.
The fan's design ensures that it can move a large volume of air at relatively low static pressure, making it suitable for ventilation and cooling in confined or obstructed spaces.
Several design aspects impact the performance of an AC muffin fan:
- Blade Shape and Angle: The blades are often designed with a specific pitch or angle to balance airflow volume and pressure. Adjusting blade angles can increase air pressure but may also increase power consumption.
- Number of Blades: More blades can increase airflow but may also add to noise and power usage.
- Motor Speed (RPM): The motor's rotational speed directly affects the airflow rate. Higher speeds produce more airflow but may generate more noise.
- Bearing Type: Dual ball bearings provide longer life and allow the fan to be mounted in any orientation without loss of performance.
- Housing Design: The frame's shape and size affect how the air flows into and out of the fan, influencing efficiency.
AC muffin fans are versatile and used in many sectors:
- Electronic Cooling: They are commonly installed in server racks, UPS systems, LED signage, and other electronic enclosures to prevent overheating.
- Industrial Equipment: Muffin fans cool motors, generators, compressors, and other machinery.
- HVAC Systems: Used for ventilation and air circulation in heating and cooling units.
- Appliances: Found in vending machines, air compressors, and refrigeration units.
- Custom Projects: Their compact size and high airflow make them suitable for DIY and custom cooling solutions.
- Compact and Space-Saving: Their square frame and cylindrical impeller allow installation in tight spaces.
- High Airflow Efficiency: Designed to move large volumes of air with low power consumption.
- Durability: Often constructed with robust materials and moisture-proof designs for harsh environments.
- Versatile Mounting: Dual ball bearings allow mounting in any orientation.
- Cost-Effective: AC motors are generally less expensive than DC or electronically commutated motors.
An AC muffin fan is a reliable, efficient, and compact cooling solution widely used in various industrial, electronic, and HVAC applications. Its operation is based on the fundamental principles of AC induction motors and axial airflow generation. The fan's design, featuring a cylindrical impeller inside a square frame, allows for high airflow in confined spaces, making it ideal for cooling electronic components, machinery, and ventilation systems. Understanding the components, working mechanism, and design factors of AC muffin fans enables users to select and maintain the right fan for their specific cooling needs.
An AC muffin fan is a type of axial fan with a compact, square frame and a cylindrical impeller, designed for space-saving installation. Regular axial fans may have open propeller blades without a housing and are often larger or used in different applications. Muffin fans are specialized for electronic cooling and confined spaces.
Yes, most AC muffin fans use dual ball bearings that allow them to be mounted horizontally, vertically, or at any angle without affecting their lifespan or performance.
To select the appropriate fan size, calculate the volume of the space or equipment to be cooled and determine the required airflow in cubic feet per minute (CFM). Then choose a fan that meets or exceeds this airflow rating while fitting the physical dimensions of your installation.
AC muffin fans can produce varying noise levels depending on their speed, blade design, and mounting. High-speed models designed for maximum airflow may be louder, while others are engineered for quieter operation. Noise levels are typically specified in decibels (dBA).
Regular maintenance includes cleaning dust and debris from the blades and housing, ensuring proper voltage supply, and checking for any unusual vibrations or noises. Troubleshooting common issues involves inspecting the motor for humming sounds, overheating, or bearing wear and replacing parts as needed.
