DC fan motors are widely used in various applications, including electronics cooling, HVAC systems, and medical equipment, due to their efficiency, reliability, and quiet operation. This article will delve into the working principle of DC fan motors, their components, and applications, providing a comprehensive understanding of how they function.
A DC fan is essentially a cooling device that converts electrical energy into kinetic energy through electromagnetic induction. It consists of a DC motor, which is the core component responsible for converting electrical energy into mechanical energy. The motor is typically composed of a rotor, stator, and control circuitry.
1. Rotor: The rotor includes a permanent magnet and the fan blades attached to it. The permanent magnet is crucial for generating the magnetic field necessary for the motor's operation.
2. Stator: The stator consists of enameled wire coils wound around a silicon steel sheet. These coils are responsible for producing the magnetic field that interacts with the rotor's magnetic field.
3. Control Circuitry: This includes Hall sensors and electronic commutation circuits. Hall sensors detect the rotor's position, ensuring that the stator coils are energized at the right time to maintain continuous rotation.
The working principle of a DC fan motor involves the conversion of electrical energy into mechanical energy through electromagnetic induction. Here's a step-by-step explanation:
1. Electromagnetic Induction: When a DC voltage is applied to the stator coils, a magnetic field is generated around them.
2. Magnetic Interaction: The magnetic field from the stator interacts with the permanent magnet on the rotor. This interaction causes the rotor to rotate due to the forces of attraction and repulsion.
3. Hall Sensors and Commutation: Hall sensors detect the position of the rotor and send signals to the electronic commutation circuit. This circuit switches the current flow through the stator coils, ensuring continuous rotation by maintaining the correct magnetic polarity.
4. Rotation and Airflow: As the rotor rotates, it turns the fan blades, creating airflow. The design of the fan blades and their angle determine the efficiency of airflow.
DC fans are versatile and used in various industries due to their advantages, such as energy efficiency, low noise, and precise speed control.

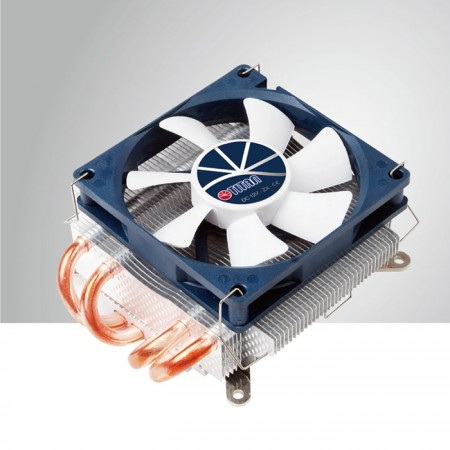

- CPU and GPU Cooling: DC fans are commonly used to cool CPUs and GPUs in computers. Their ability to provide multiple speed settings allows for efficient heat dissipation without generating excessive noise.
- Power Supplies: They are also used in power supplies to maintain optimal operating temperatures.
- Air Conditioning and Heating: DC fans are integrated into HVAC systems for efficient air circulation and temperature regulation. Their variable speed control allows for customized airflow, enhancing comfort while reducing energy consumption.
- Ventilators and Diagnostic Machines: DC fans are preferred in medical equipment due to their reliability, quiet operation, and consistent performance.
- Vehicle Systems: While not as prevalent in cooling systems, DC motors are used in vehicles for other applications like wiper motors and power seats.
DC fans come in several types, each suited to specific applications:
1. Axial DC Fans: These fans push air in a straight line parallel to the axis of rotation. They are commonly used in air conditioning systems where directional airflow is required.
2. Cross-flow DC Fans: These fans provide a wide and uniform airflow, making them ideal for cooling larger surfaces in electronics or HVAC systems.
3. DC Blowers: These are centrifugal fans that produce high-pressure airflow, often used in server racks or industrial equipment for forced-air cooling.
- Energy Efficiency: DC fans offer high efficiency due to their ability to adjust speed according to cooling needs, reducing power consumption.
- Quiet Operation: They operate quietly, making them suitable for environments where noise needs to be minimized.
- Long Lifespan: DC motors have a longer lifespan compared to traditional AC motors, reducing maintenance costs over time.
When designing or selecting DC fans, several factors should be considered to ensure optimal performance:
1. Airflow Requirements: The fan should be capable of providing the required airflow for the specific application. This involves calculating the volume of air needed and the pressure required to overcome any resistance in the system.
2. Noise Level: For applications where noise is a concern, fans with lower decibel ratings should be chosen. This is particularly important in residential HVAC systems or medical equipment.
3. Power Consumption: The fan's power consumption should align with the available power supply and energy efficiency goals. DC fans offer variable speed control, which helps in optimizing power usage.
4. Environmental Conditions: The fan's durability and performance under various environmental conditions, such as temperature and humidity, must be considered. Some applications may require fans that can operate effectively in extreme conditions.
Advancements in DC fan technology are focused on improving efficiency, reducing noise, and enhancing durability. Some emerging trends include:
1. Advanced Materials: The use of advanced materials for fan blades and motors, such as carbon fiber or nanomaterials, can improve efficiency and reduce weight.
2. Smart Fan Systems: Integration with IoT technology allows for real-time monitoring and control of fan performance, optimizing energy consumption based on real-time data.
3. Inverter Technology: Improvements in inverter technology enable smoother speed control and higher efficiency, further reducing energy consumption.
In conclusion, DC fan motors are crucial components in modern cooling systems, offering advantages such as energy efficiency, quiet operation, and precise speed control. Their versatility and reliability make them ideal for a wide range of applications, from electronics cooling to HVAC systems and medical equipment. Understanding the working principle of DC fan motors is essential for optimizing their performance and selecting the right type for specific needs.
The main components of a DC fan motor include the rotor, stator, and control circuitry. The rotor consists of a permanent magnet and fan blades, while the stator includes coils and a silicon steel sheet. The control circuitry involves Hall sensors and electronic commutation circuits.

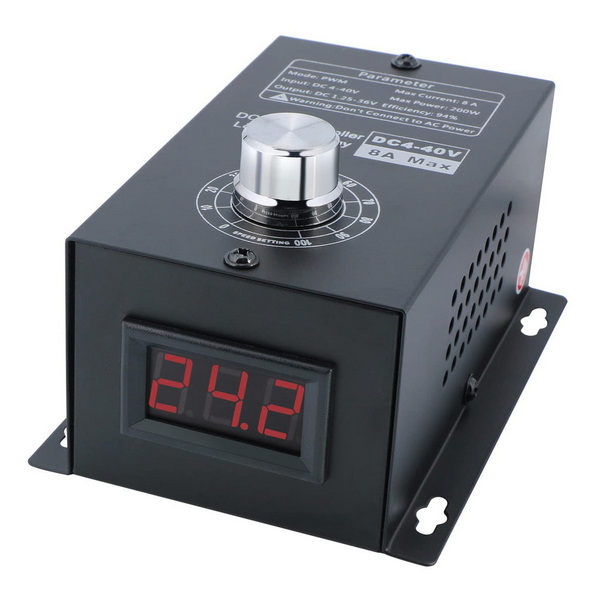

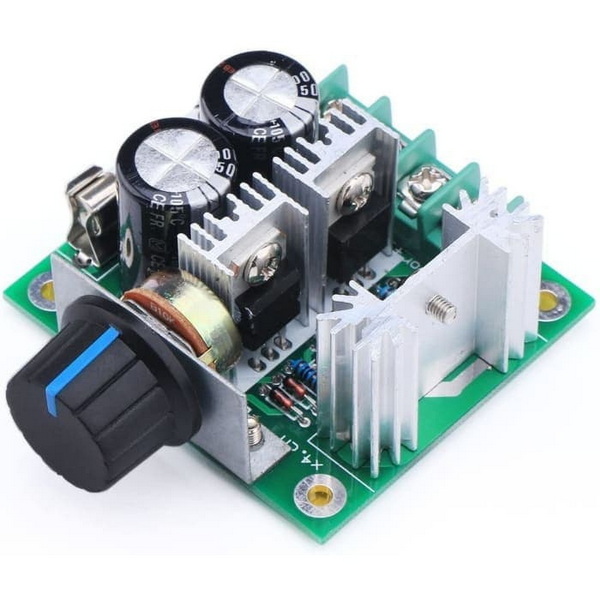

DC fan motors achieve variable speed control through pulse-width modulation (PWM) signals. These signals regulate the voltage supplied to the motor, allowing for precise control over the fan's speed based on cooling requirements.
DC fans in HVAC systems offer several advantages, including energy efficiency, quiet operation, and the ability to provide customized airflow through variable speed control. This enhances comfort while reducing energy consumption.
DC fans are preferred in medical equipment due to their reliability, quiet operation, and consistent performance. These characteristics are crucial in healthcare settings where equipment must operate smoothly and quietly.
Common types of DC fans used in industrial applications include axial DC fans, cross-flow DC fans, and DC blowers. Each type is suited to specific needs, such as directional airflow or high-pressure airflow.
