Fixing the AC cooling fan on a 2002 Hyundai Accent can be a manageable DIY project if you have the right tools and follow the correct steps. This article will guide you through the process, highlighting key points and providing visual aids to help you understand the procedure better.

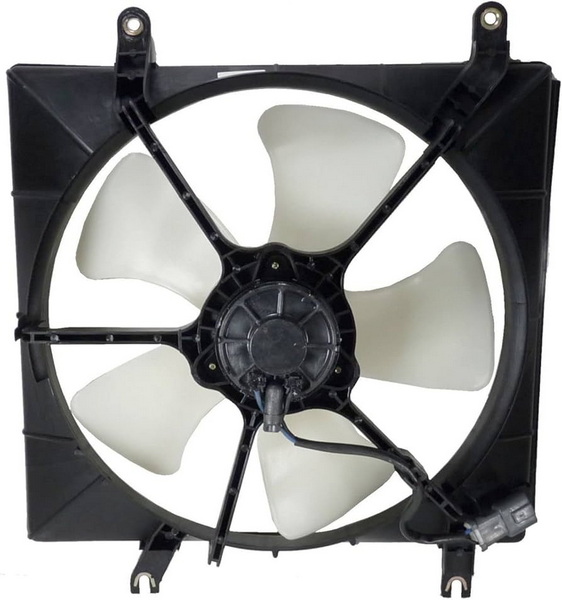

The AC cooling fan, also known as the condenser fan, plays a crucial role in maintaining the efficiency of your vehicle's air conditioning system. It helps cool the condenser coils, which are essential for dissipating heat from the refrigerant. If the fan fails, your air conditioning may not work properly, and your engine could overheat.

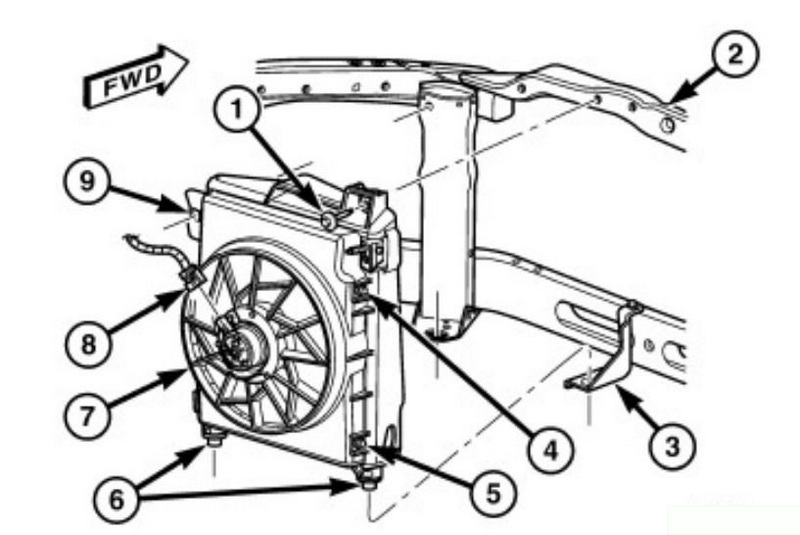

The AC cooling fan in a 2002 Hyundai Accent is typically located in front of the radiator, often on the driver's side or passenger's side, depending on the model's configuration. It is part of the cooling system that includes the radiator fan.
To replace or repair the AC cooling fan, you will need the following tools:
- 10mm Socket or Wrench: For removing bolts that hold the fan in place.
- Ratchet: To use with the socket for easier bolt removal.
- Torx Screwdriver (if applicable): Some models may use Torx screws for fan mounting.
- Pliers or Wire Cutters: For handling electrical connectors.
- Multimeter (optional): Useful for testing electrical circuits.
Before starting any electrical work, ensure the battery is disconnected to prevent any accidental starts or electrical shocks.
Disconnect the negative terminal of the battery.
1. Identify the Fan Location: The fan is usually mounted in front of the radiator. You may need to remove an air duct or other components to access it.
2. Remove Mounting Bolts: Use a 10mm socket to remove the bolts holding the fan in place.
Remove the two 10mm bolts.
3. Disconnect Electrical Connector: Press the tab on the connector and pull it off.
Disconnect the electrical connector.
4. Pull Out the Fan: Gently pull the fan away from its mounting clips.
Pull the fan out of its clips.
1. Inspect the Fan: Check for any damage or wear. If damaged, replace it with a new one.
2. Install the New Fan: Slide the new fan into its clips and secure it with the bolts you removed earlier.
Secure the fan with the 10mm bolts.
3. Reconnect Electrical Connector: Push the connector back onto its socket.
Reconnect the electrical connector.
1. Replace Any Removed Components: Put back any air ducts or other parts you removed to access the fan.
2. Reconnect the Battery: Connect the negative terminal of the battery.
Reconnect the negative terminal.
- Check Electrical Connections: Ensure all connectors are secure and not damaged.
- Inspect Fan Switch or Wiring: Look for any shorts or damage in the wiring or fan switch.
- Thermostat and Sensors: While the thermostat doesn't control the fan directly, faulty sensors can prevent the fan from turning on.
- Check for Short Circuits: Ensure there are no shorts in the wiring that could keep the fan on.
- Inspect Fan Switch: The switch might be stuck or faulty.
A multimeter can be useful for diagnosing electrical issues with the fan. Here's how to use it:
1. Set the Multimeter to DC Volts: This setting is used to measure the voltage supplied to the fan.
2. Connect the Leads: Place the positive lead on the positive terminal of the fan connector and the negative lead on the negative terminal.
3. Check the Reading: If the reading matches the battery voltage (around 12V), the electrical circuit is likely fine. If not, there might be a problem with the wiring or switch.

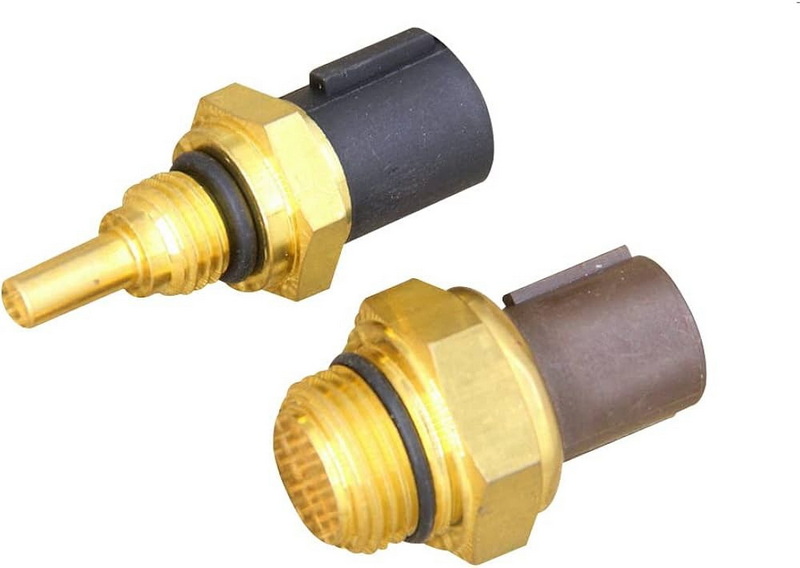

The fan switch is usually controlled by the engine coolant temperature sensor or the air conditioning system. If the fan doesn't turn on when the AC is activated or when the engine is hot, the switch might be faulty.
Regular maintenance can help extend the life of your AC cooling fan:
- Clean the Fan: Use compressed air to remove dust and debris from the fan blades.
- Check Electrical Connections: Regularly inspect the electrical connectors for any signs of wear or corrosion.
- Monitor Fan Operation: Ensure the fan turns on when the AC is activated or when the engine reaches a certain temperature.
- Wear Protective Gear: Always wear gloves and safety glasses when working with tools.
- Work in a Well-Ventilated Area: Ensure good airflow to prevent inhaling dust or fumes.
When selecting a replacement fan, ensure it matches your vehicle's specifications. Consider factors like fan size, voltage, and current rating to ensure compatibility.
While DIY repairs can save money, if you're not comfortable with the process or encounter complex issues, it's best to consult a professional mechanic. They can provide expert diagnosis and repair, ensuring your vehicle operates safely and efficiently.
Replacing or repairing the AC cooling fan on a 2002 Hyundai Accent is a feasible DIY task. It requires basic tools and some patience. Always ensure safety by disconnecting the battery before starting any electrical work. If you're unsure about any part of the process, consulting a professional mechanic is advisable.
You will need a 10mm socket or wrench, a ratchet, and possibly a Torx screwdriver if your model uses Torx screws for fan mounting. Additionally, pliers or wire cutters may be useful for handling electrical connectors.
The AC cooling fan is typically located in front of the radiator, often on the driver's side or passenger's side, depending on the model's configuration.
If your AC cooling fan does not turn on, check the electrical connections for any damage or looseness. Also, inspect the fan switch and wiring for any shorts or faults. Disconnecting the engine coolant temperature sensor can help determine if the issue is with the sensor or the fan itself.
While universal fans are available, it's best to use a fan specifically designed for your vehicle model to ensure proper fit and function. Check with auto parts suppliers like 1A Auto for direct replacement parts.
To test the fan, disconnect the electrical connector and use a jumper wire to connect the fan directly to the battery (positive to positive, negative to negative). If the fan spins, the issue might be with the wiring or switch. If it doesn't spin, the fan itself could be faulty.
